Description
Part#: ALL-85341
Manufacturer: Nissan
Year Range: 96-04
Engine Size: 3.3L - 3272cc - V6 - Sohc

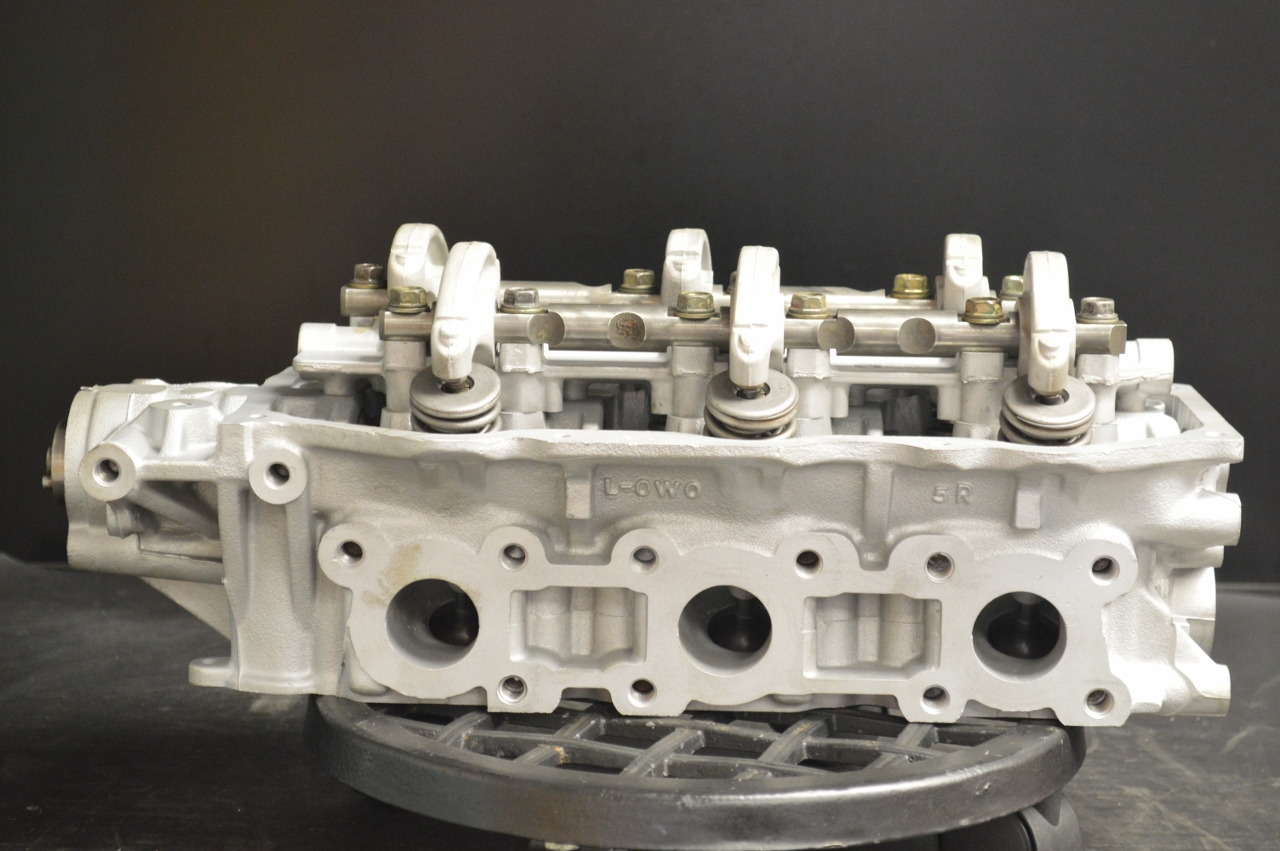

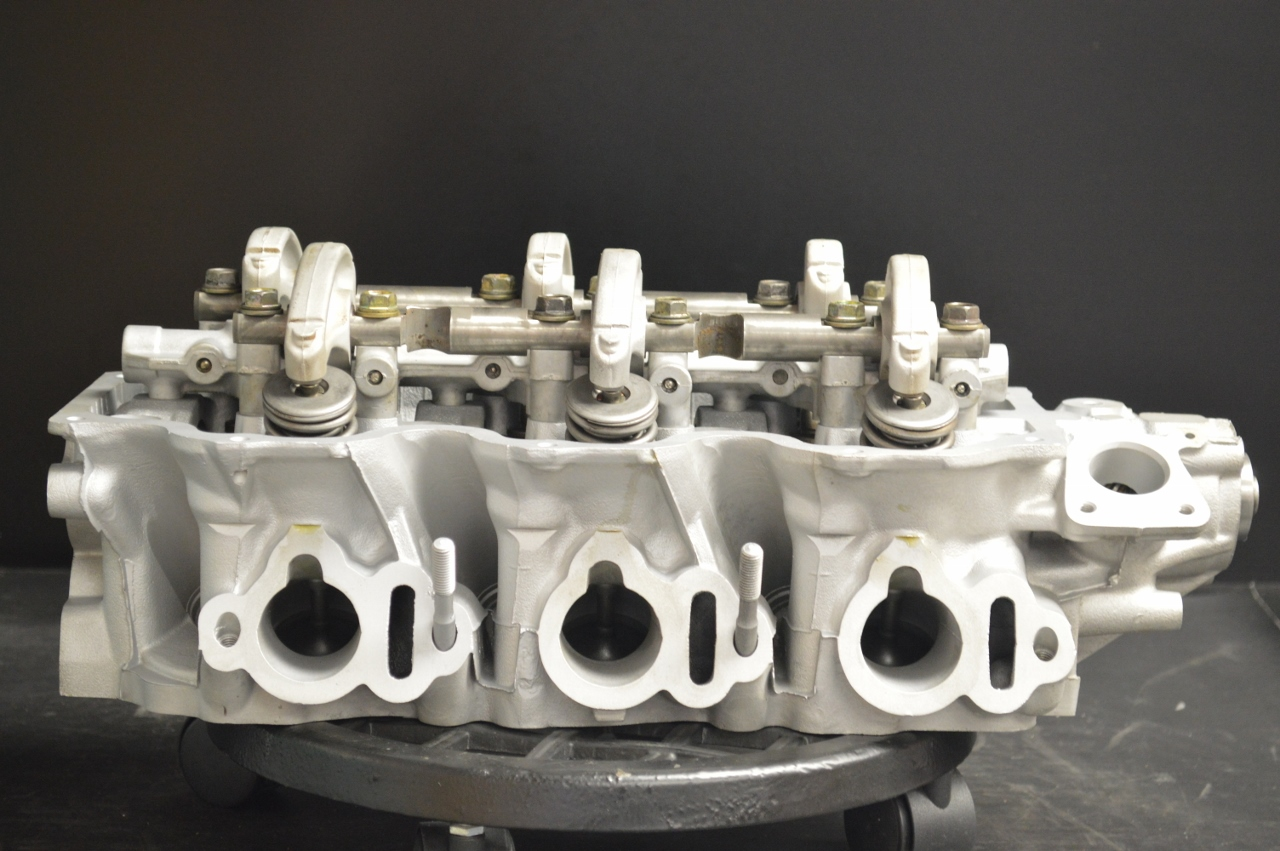

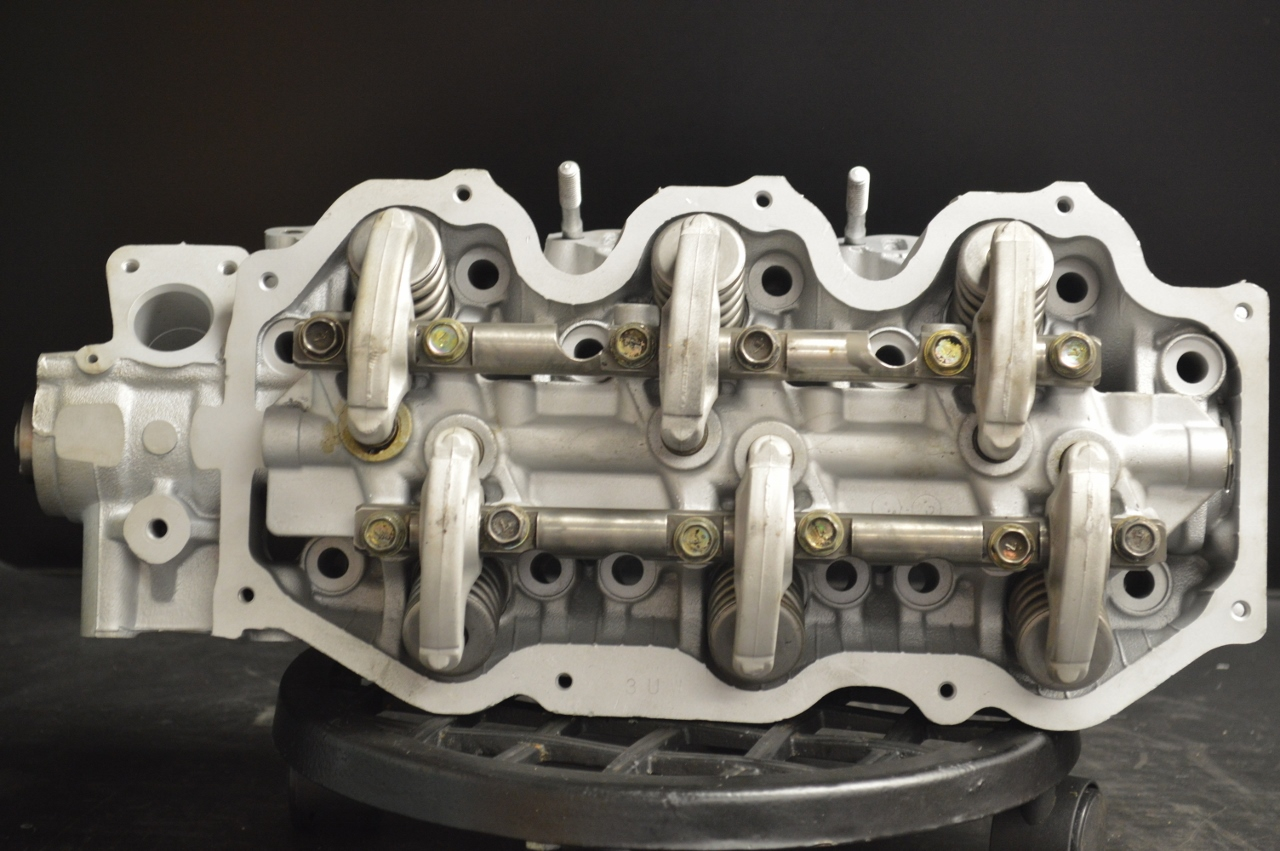

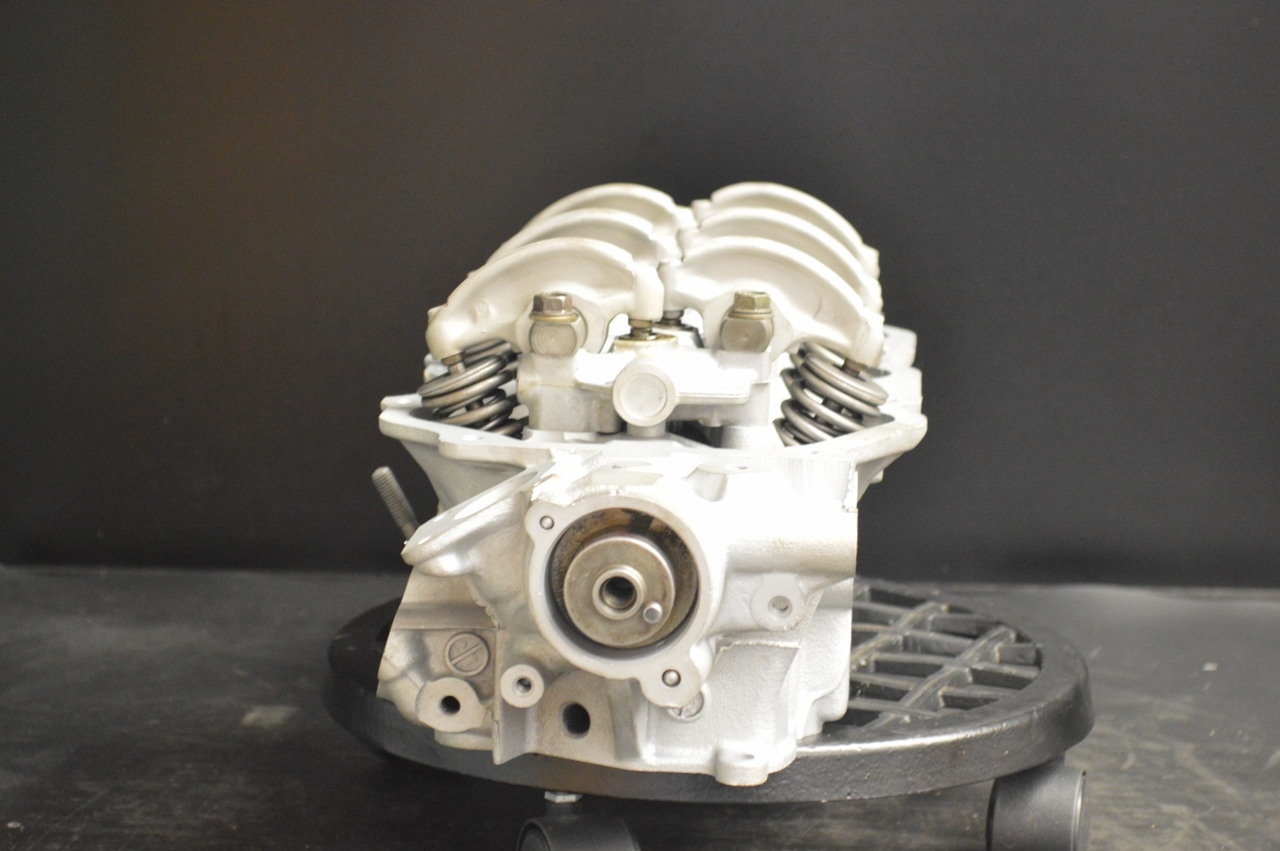

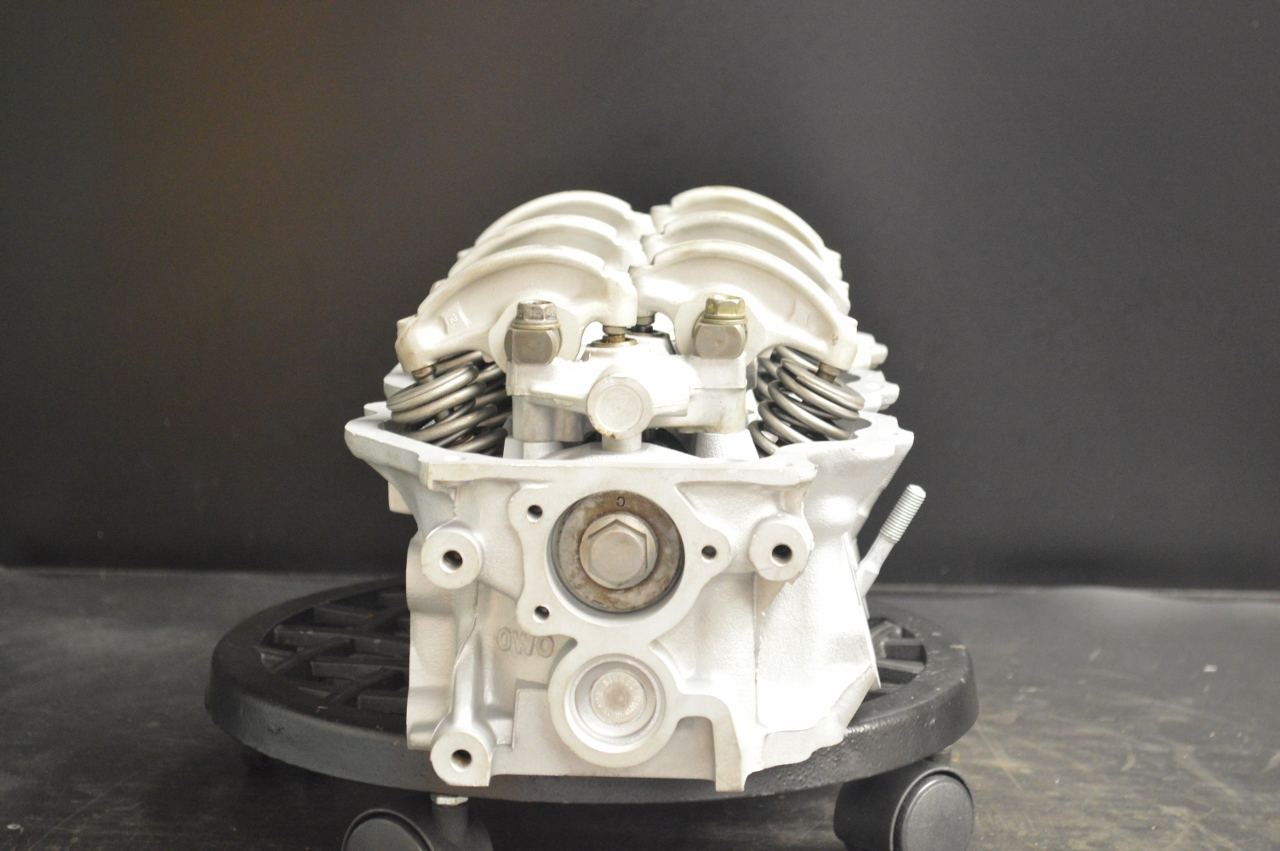

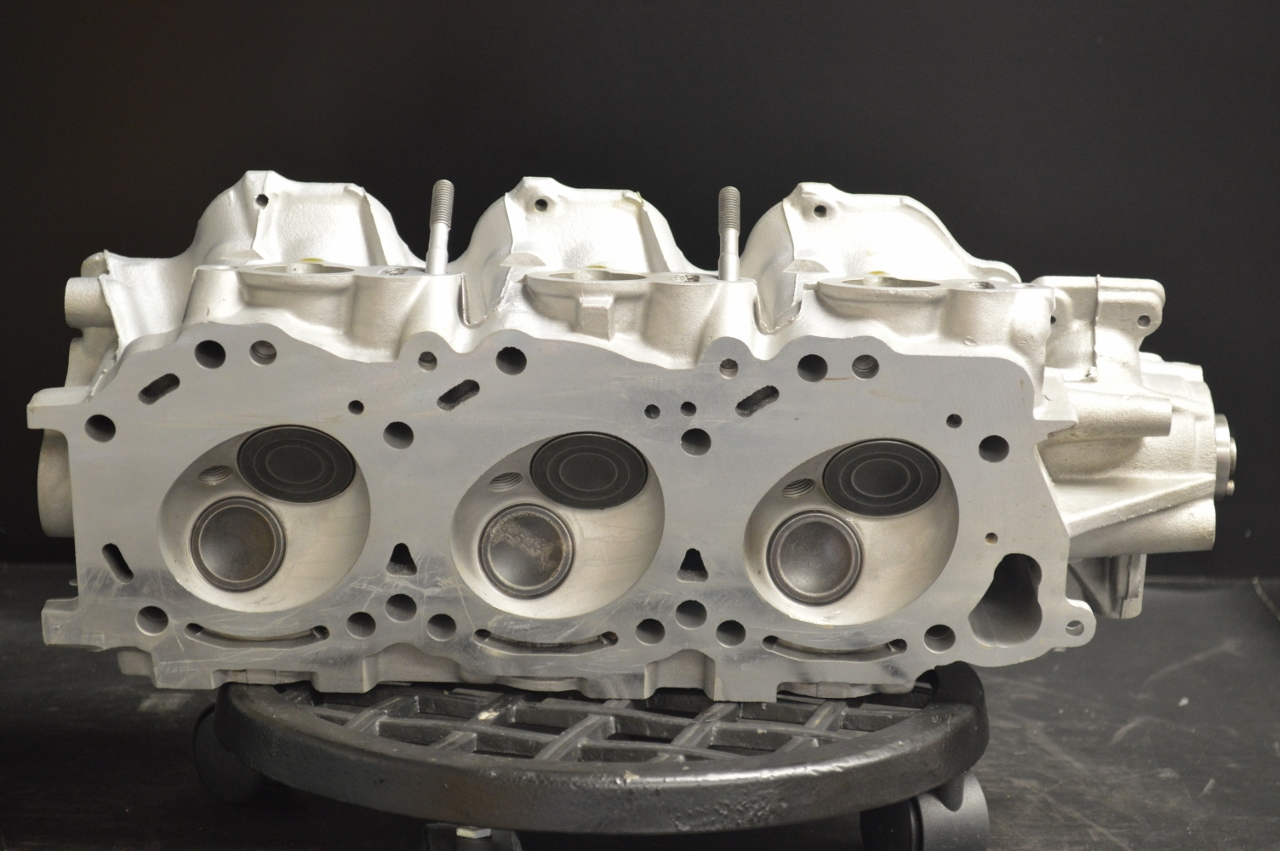

Description: 96-04 Nissan 3.3L SOHC - 6 Valve L-OWO Cylinder Head - LEFT SIDE
This Cylinder Head has a core charge of $100.00 included in the cost. This charge is FULLY REFUNDED upon return. We will include a prepaid label for the return freight.
The 96-04 Nissan 3.3L SOHC - 6-valve L-OWO Cylinder Head - LEFT SIDE, meticulously crafted to exceed OEM specifications by Nissan. Our commitment to quality and performance is reflected in this engineered cylinder head.
Designed to fit seamlessly into Nissan vehicles spanning the years 1996 to 2004, this cylinder head is a perfect match for engines with a displacement of 3.3L (3272cc), featuring a V6 configuration and Single Overhead Camshaft (SOHC) setup.
Our collection of cylinder heads is meticulously crafted with precision and care and then subjected to thorough testing and refurbishment procedures, guaranteeing peak performance and reliability. Everything about it, from its sturdy build to its accurate valve timing, is painstakingly examined and improved to meet or exceed the original manufacturer's standards.
If you're looking to replace a tired cylinder head or boost the performance of your Nissan, our product provides a smooth solution for both needs. Rest assured, with our cylinder head, you're not only getting a reliable replacement but also a component that exceeds the performance of its OEM counterpart.
Looking for a dependable cylinder head that delivers top-notch performance and lasting durability? Your search ends here with our Left Side 96-04 Nissan 3.3L SOHC - 6 Valve L-OWO Cylinder Head. Trust in Nissan's legacy of excellence and precision engineering to deliver the performance you demand and the reliability you deserve.
With our premium cylinder head, you can improve the performance and reliability of your vehicle today. Experience the difference firsthand as you enjoy smoother operation, improved efficiency, and enhanced overall performance.
At Nissan, we deeply grasp the significance of quality and reliability. We constantly work to exceed expectations in order to make sure that our products continuously outperform those of the competition. With our cylinder head, you can drive with assurance because Nissan's stellar reputation for quality is behind you.
If you're in the market for a wider selection of cylinder head choices, take a look at our Nissan Cylinder Heads collection. Find the perfect fit for your vehicle in our range. If you're looking for help or have any questions, our expert support team is available through our contact form, by phone at 866-766-9955, or via email at sales@alliedmotorparts.com. We're dedicated to assisting you every step of the way. For detailed information on cylinder heads, visit our blog section.
Compatible Vehicle
| MAKE | MODEL | YEAR | ENGINE |
|---|---|---|---|
| Infiniti | QX4 | 1997-2000 | 3.3L 3275CC V6 GAS SOHC |
| Nissan | Frontier | 1999-2004 | 3.3L 3275CC V6 GAS SOHC |
| Nissan | Pathfinder | 1996-2000 | 3.3L 3275CC V6 GAS SOHC |
| Nissan | Quest | 1999-2002 | 3.3L 3275CC V6 GAS SOHC |
| Nissan | Xterra | 2000-2004 | 3.3L 3275CC V6 GAS SOHC |
Not sure this is your casting? Call 866-766-9955 with your casting number and your vehicle's year, make and engine, and we'll confirm it before you buy.
Process & Warranty
Cylinder Head Rebuilding Process
1. Initial Inspection: As a unit comes to our shop, we give it an initial inspection to determine whether there is any reason the head should not proceed to rebuilding. This quickly catches problems such as cracks, casting damage and other conditions that would halt the process for that casting.
2. Teardown: The cylinder head is fully disassembled, which reveals other areas of potential damage to the casting. The parts and the head are separated and go through different cleaning processes.
3. Cleaning: Cast iron heads are cleaned in a thermal cleaning system — baked at 600° to reduce grease and oil to ash, then put through a steel-shot machine for a brilliant finish. Aluminum heads are baked at a lower temperature or put through a high-pressure wash, then glass-beaded.
4. Head Inspection: After cleaning, heads are pressure tested or Magnafluxed to find any cracks. All bolt holes, valve guides, valve seats and other areas are inspected for broken bolts, broken taps, cracked guides and other impairments. Straightness and cam bore wear are also checked.
5. Machining: All heads have guides installed to meet OE conditions and are resurfaced to far exceed factory specifications for surface finish. A three-angle valve job achieves valve seat runout under .001". Valves are ground for a perfect seal between valve and seat.
6. Assembly: New OE-style valve guide seals are installed. Springs are tested for proper seat pressure. Valve seat sealing is vacuum-checked for an airtight fit. Lifters are bled and rebuilt for zero lash after startup. Cams are polished and clearances are checked twice to meet OE oil clearances.
7. Final Inspection: Every head is visually inspected — surface finish, lash, bolt holes and all other areas — to ensure a quality cylinder head.
Questions about our cylinder head services? Call 1-866-766-9955.
Warranty — 12 months from purchase
Match the head before installation. We will not warranty an incorrectly installed head. Call us immediately with any questions or concerns about your purchase.
First 3 months:
- Repair or replacement of the cylinder head.
- Gasket set supplied for reinstallation.
- Labor calculated from book time at $25.00 per hour, up to a maximum of 10 hours.
- Replacement of fluids and filters.
Remaining 9 months:
- Repair or replacement of the cylinder head.
- Gasket set supplied for reinstallation.
- Replacement of fluids and filters.
- No labor is covered.
Warranty is void if:
- The head was improperly installed.
- The head was overheated (heat tab melted or missing).
- The head received insufficient oiling.
- The cooling system operated improperly.
Warranty returns must be sent to Allied Motor Parts uncleaned and fully assembled — any disassembly voids the warranty — and must be accompanied by proof of purchase. There is no warranty on threaded bolt holes after installation.
This warranty is in lieu of any other warranty, expressed or implied, including any implied warranty of merchantability or fitness for a particular purpose.
Quality Assurance
Here’s why our cylinder heads stand out:
Thorough Inspection: Every head undergoes a complete teardown, cleaning, and detailed inspection for cracks and imperfections.
Advanced Cleaning: Thermal cleaning for cast iron and high-pressure washing for aluminum ensures a brilliant finish.
Precision Machining: CBN resurfacing, triple-angle valve cuts, and guide installations exceed OEM specifications.
Rigorous Testing: Vacuum tests, tension checks, and pressure tests guarantee performance and durability.
High-Quality Components: New seals, plugs, and rebuilt lifters ensure optimal functionality.
Final Assurance: Each head is inspected, stamped, and stored in a climate-controlled environment.
Wide Availability: Over 2,000 cylinder heads for all makes and models, ready for repair or exchange.
