Part#: ALL-20237
Manufacturer: Honda
Year Range: 90-93
Engine Size: 2.2L - 2200cc - L4

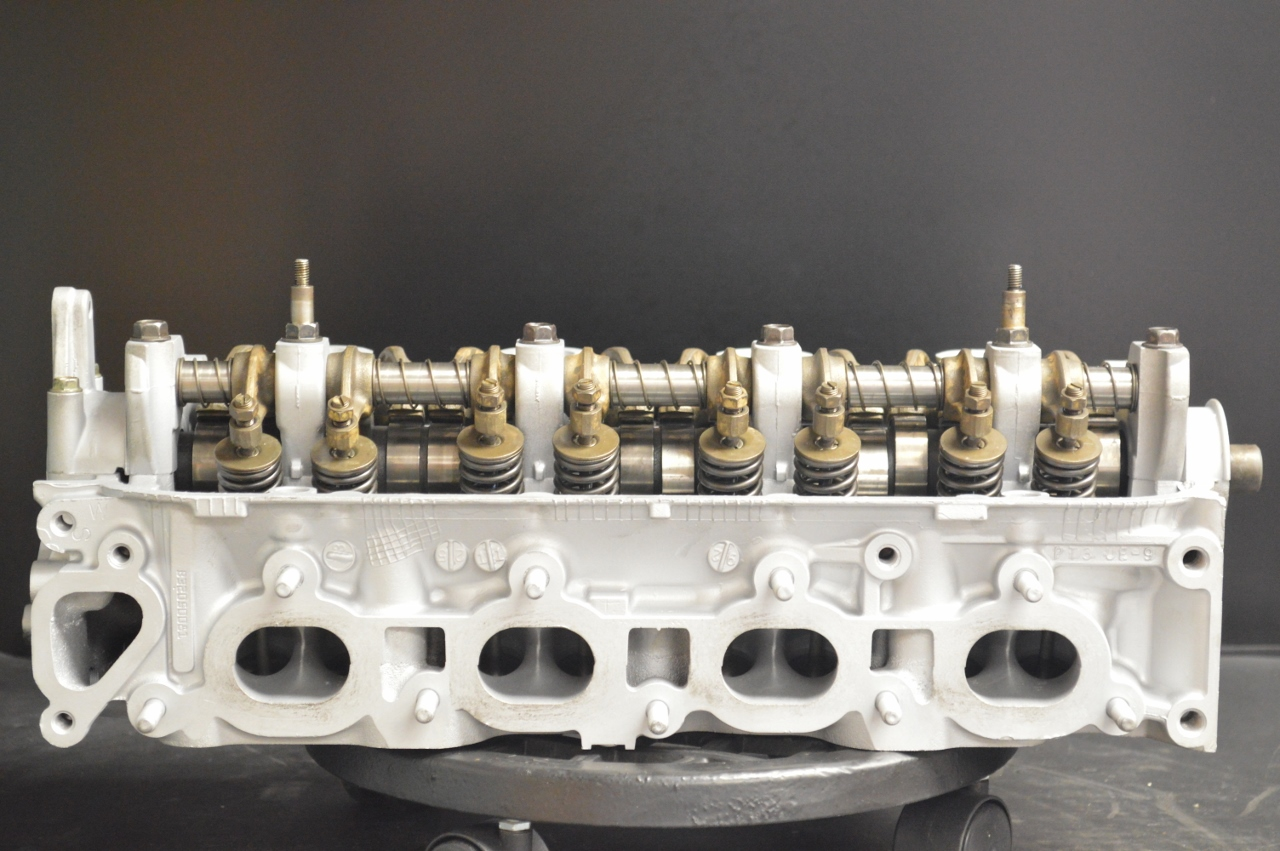

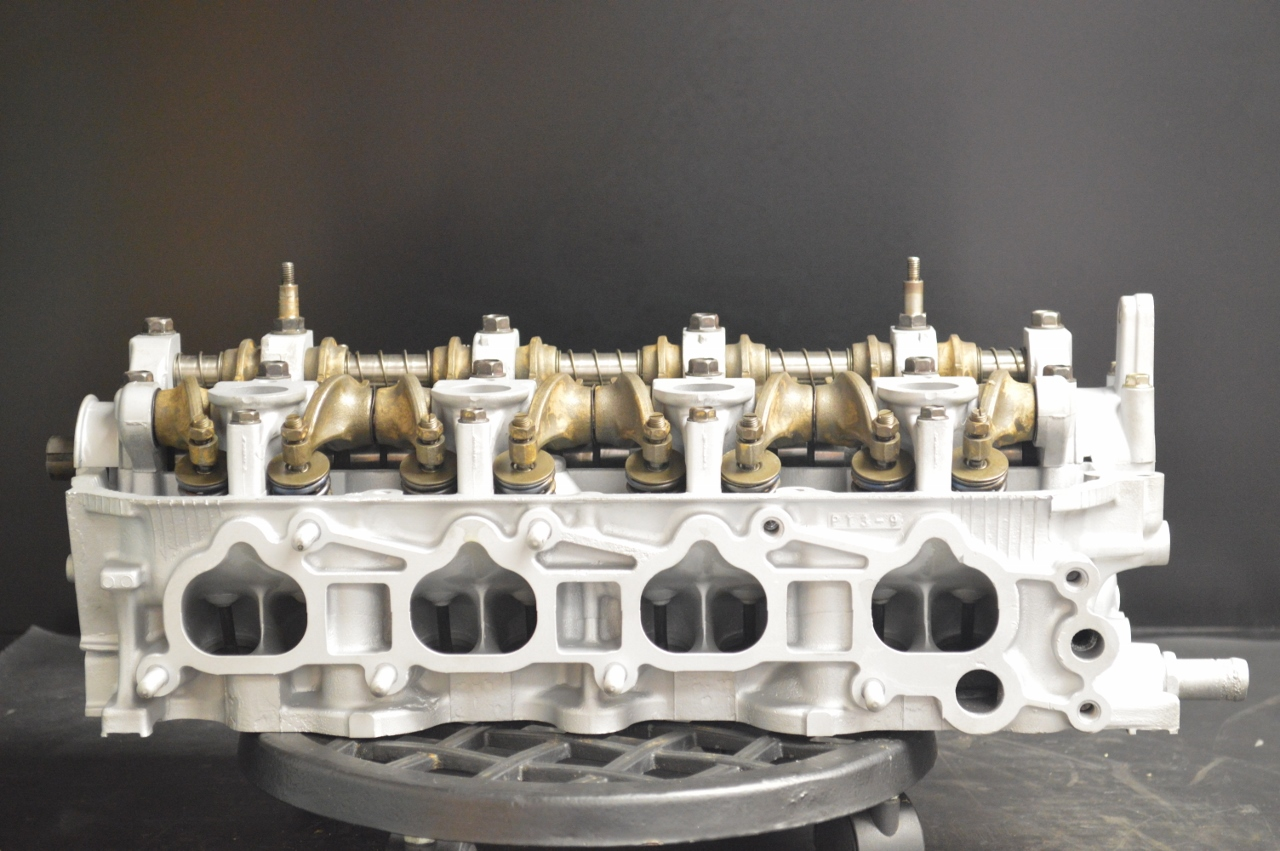

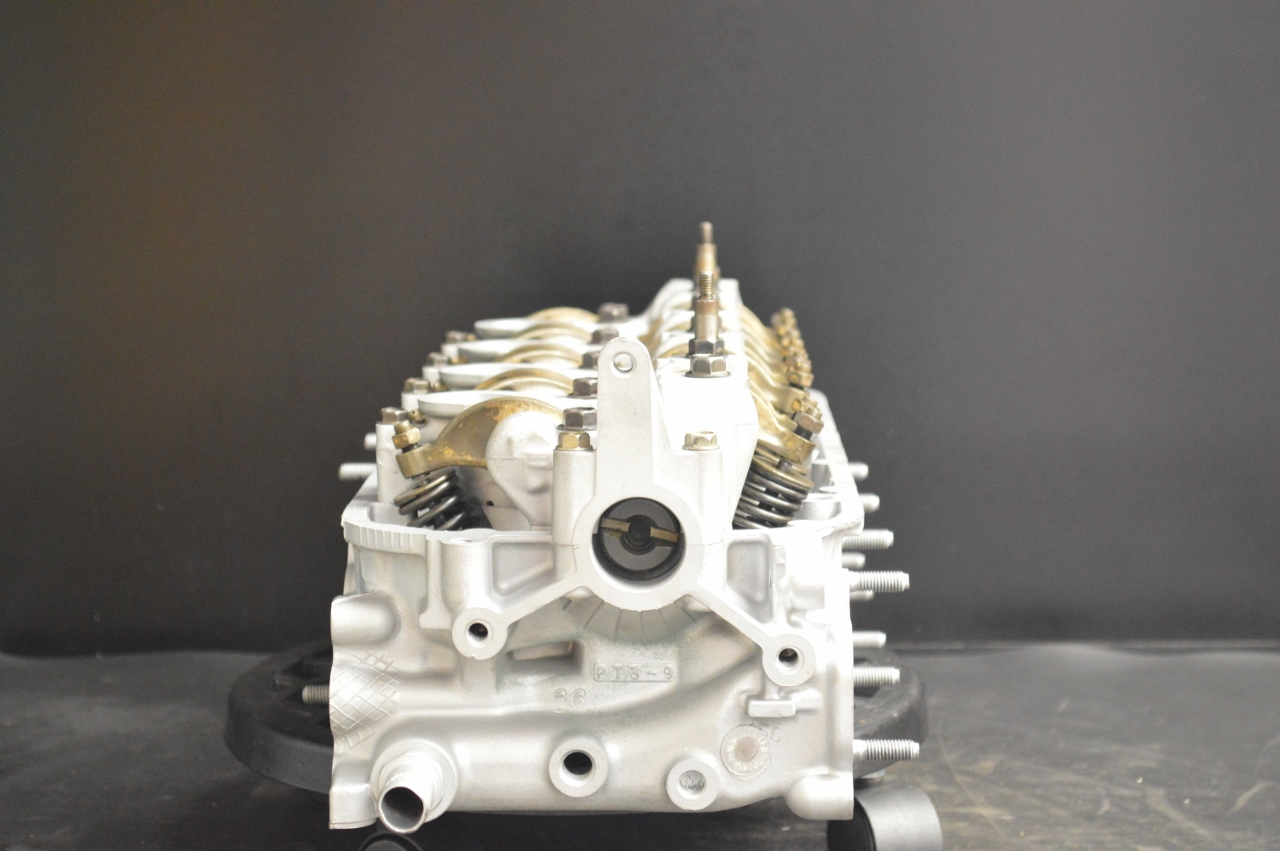

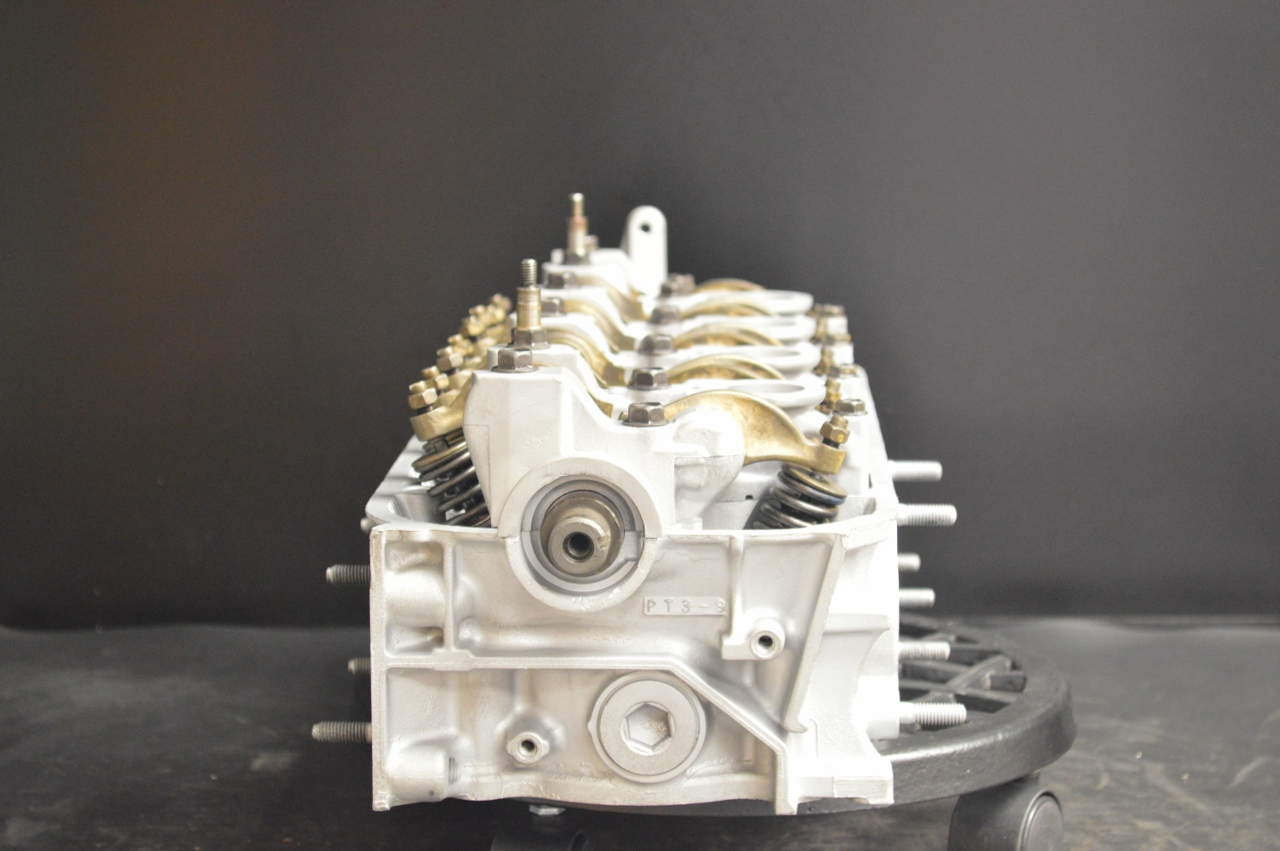

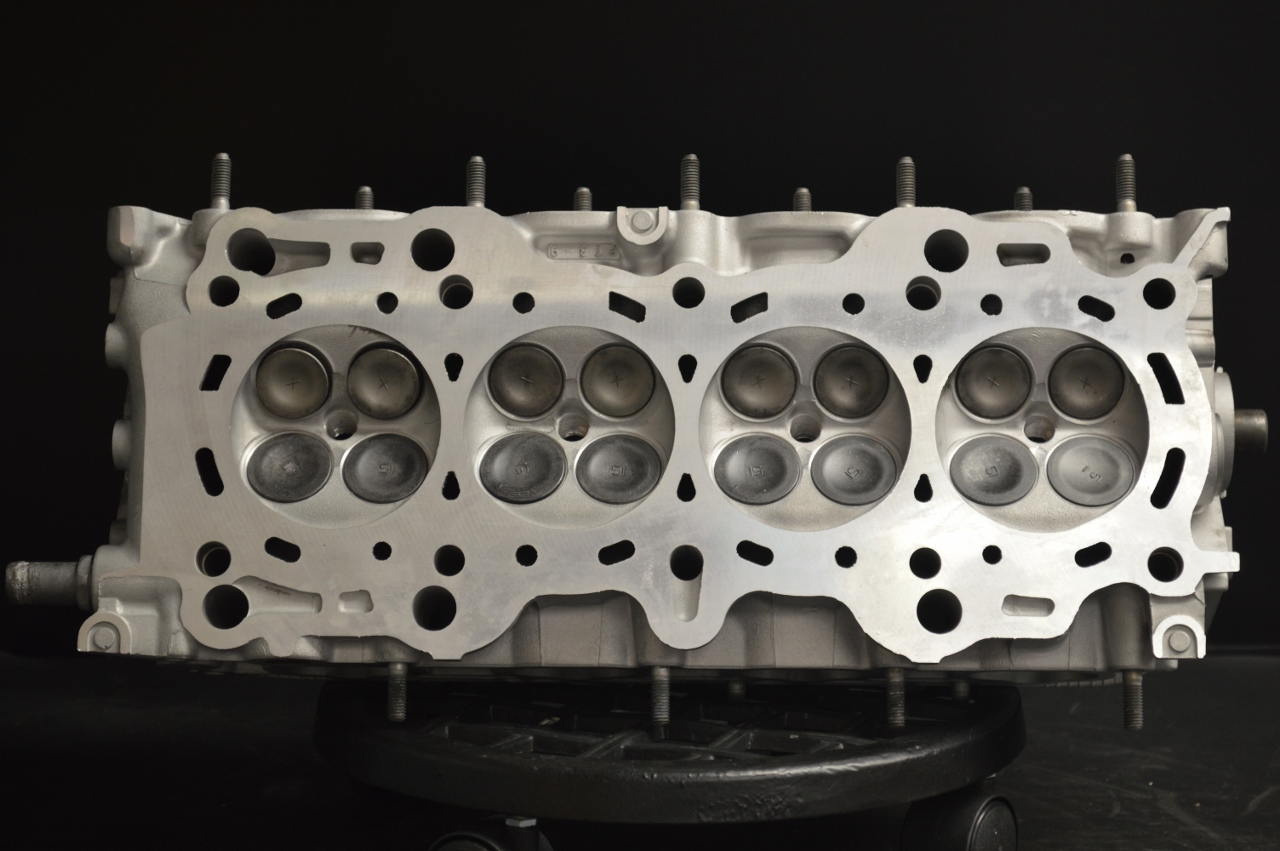

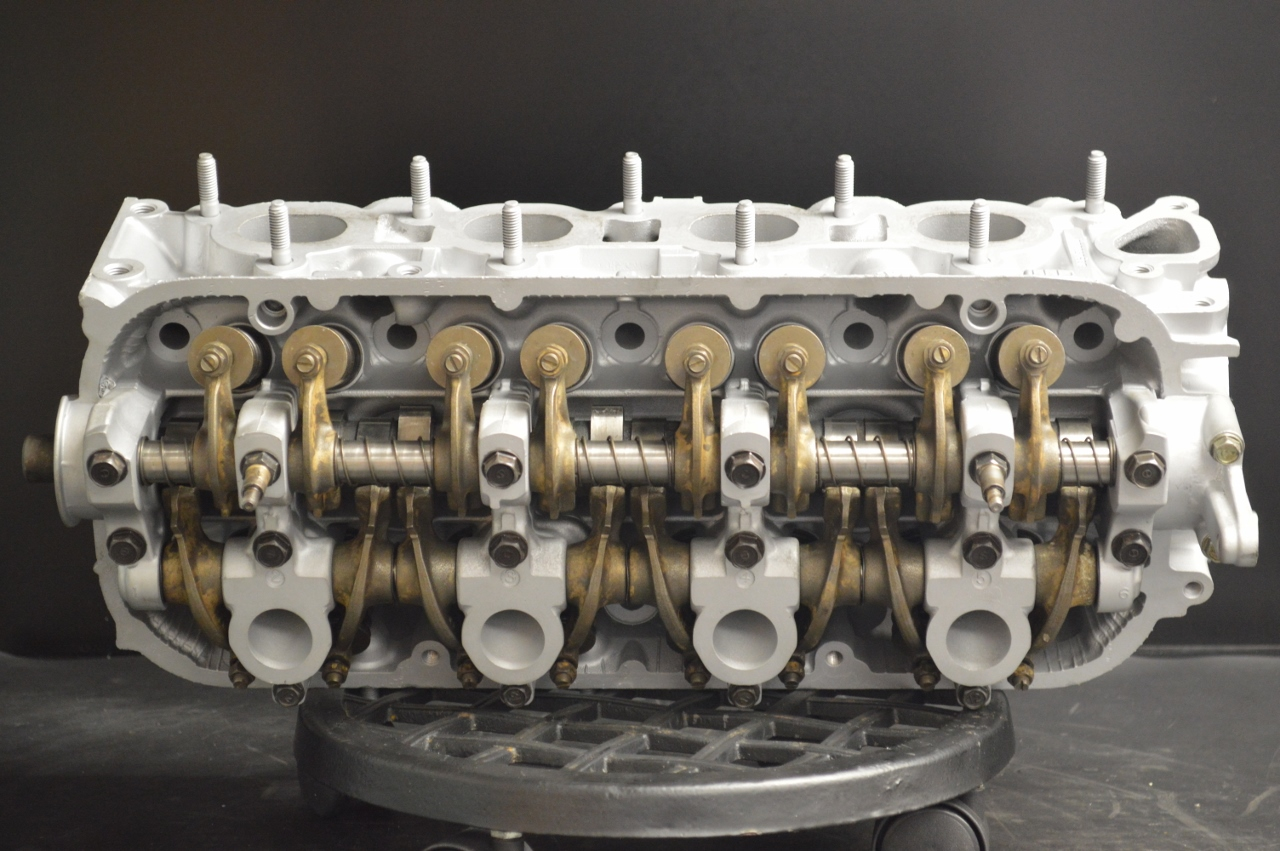

Description: 90-93 Honda 2.2L 2200cc F22A PT3 Cylinder Head
Introducing the 90-93 Honda 2.2L 2200cc F22A PT3 Cylinder Head, a superior replacement part that exceeds OEM specifications. Crafted by the trusted manufacturer, Honda, this cylinder head is designed to enhance the performance of your vehicle.
The F22A engine series is known for its reliability and power, and this F22A head is no exception. Whether you're in need of a replacement or looking to upgrade, the F22A head is your solution.
With its exceptional quality and precision engineering, the F22A1 head ensures that your engine runs smoothly and efficiently, providing the power and performance you expect from a Honda engine.
If you're searching for an F22A engine for sale or specifically an F22A head, look no further. Part# ALL-20237 is the perfect fit for your 90-93 Honda, with a 2.2L - 2200cc - L4 engine.
For more options in Honda Cylinder Heads, explore our collection and find the best Cylinder head option for your vehicle Should you have any questions or require assistance, our expert support team is readily available to address your inquiries. We are committed to helping you make the right choice for your automotive needs.
This Cylinder Head has a core charge of $100.00 included in the cost. This charge is FULLY REFUNDED upon return. We will include a prepaid label for the return freight.
The cylinder head included in this listing will fit the vehicles listed below. It is also important to review/confirm the fitment notes above to ensure the vehicle specifics of the head are correct for your application. If you have any questions that this may not be the correct head for your vehicle or need help in locating the correct head, please contact us via phone or email prior to making a purchase.
1990-1993 - Honda - Accord - 2.2L 2156CC l4 GAS SOHC Naturally Aspirated - Extra Bolt Hole For Coil - Casting PT31990-1993 - Honda - Prelude - 2.2L 2156CC l4 GAS SOHC Naturally Aspirated - Extra Bolt Hole For Coil - Casting PT3
Cylinder Head Rebuilding Process
-
Initial Inspection: As a unit comes to our shop, we will give it an initial inspection to determine if there are any reasons the head should not proceed to the rebuilding process. This inspection can quickly catch problems such as cracks, casting damage, and other situations that would halt the rebuilding procedure for that casting.
-
Teardown: Teardown is also important to the initial inspection process as the cylinder head is disassembled because you can determine other areas of potential damage to the casting. The parts and cylinder head are separated and go through different cleaning processes.
- Cleaning Process: We use several different processes to clean cylinder heads.
-
Aluminum Heads: Aluminum heads are either baked at a lower temperature or put into a high-pressure wash. They are also glass-beaded to give them a brilliant finish.
-
Head Inspection: After cleaning heads, they are then pressure tested or magnaflux to determine any cracks. All bolt holes and valve guides, in addition to the valve seat and other parts of the head, are inspected for damage such as broken bolts, broken taps, cracked guides, and other impairments. Straightness and cam bore wear is also checked.
-
Machining: All cylinder heads have guides installed to meet OE conditions. They are resurfaced to far exceed factory specifications on surface finish. An angle valve job is performed to achieve a valve seat runout of less than .001. Valves are ground to make a perfect seal between the valve and valve seat.
-
Assembly: All heads have new OE style valve guide seals installed. Springs are tested to ensure proper seat pressures. Valve seat sealing is checked with a vacuum to ensure an airtight fit between the valve and the valve seat. Lifters are bled and rebuilt to accomplish zero lashes after the startup of the engine. Cams are polished and clearances are checked twice to meet OE oil clearances.
-
Final Inspection: Heads are visually inspected. The surface finish, lash, bolt holes, and all other areas are inspected to ensure a quality cylinder head.
If you have any further questions regarding our cylinder head services or how to get a quality cylinder head, contact us at 1-866-766-9955!
Warranty
Match head before installation! We will NOT warranty incorrect head installation.
Please call us immediately if you have any questions or concerns with your cylinder head purchase.
12 Months from time of purchase
First 3 Months warranty will consist of the following terms:
- Repair or Replacement of Cylinder Head.
- Supply of Gasket Set for Reinstallation.
- Labor time will be calculated from book time times $25.00 per hour. A maximum payout will not exceed 10 hours.
- Replacement of fluids and filters will be included in our warranty.
Remaining term of warranty will consist of the following:
- Repair or Replacement of Cylinder Head.
- Supply of Gasket Set for Reinstallation.
- Replacement of fluids and filter will be included.
- No LABOR will be given.
Warranty is VOID under any of the following conditions:
- Improper Installation.
- Overheating. Heat Tab melted or missing.
- Insufficient oiling to cylinder head.
- Faulty Cooling system operation.
Possible warranties are to be returned to Allied Motor Parts. Potential warranties are to be uncleaned and totally assembled. Any disassembly of cylinder head will VOID warranty. All warranties must be accompanied by proof of purchase.
No warranties on threaded bolt holes after installation.
The warranty described above shall be in lieu of any other warranty, expressed or implied, including, but not limited to, any implied warranty of merchantability of fitness for a particular purpose.
