Description
Part#: ALL-75009
Manufacturer: Toyota
Year Range: 86-91
Engine Size: 2.0L - L4 - DOHC

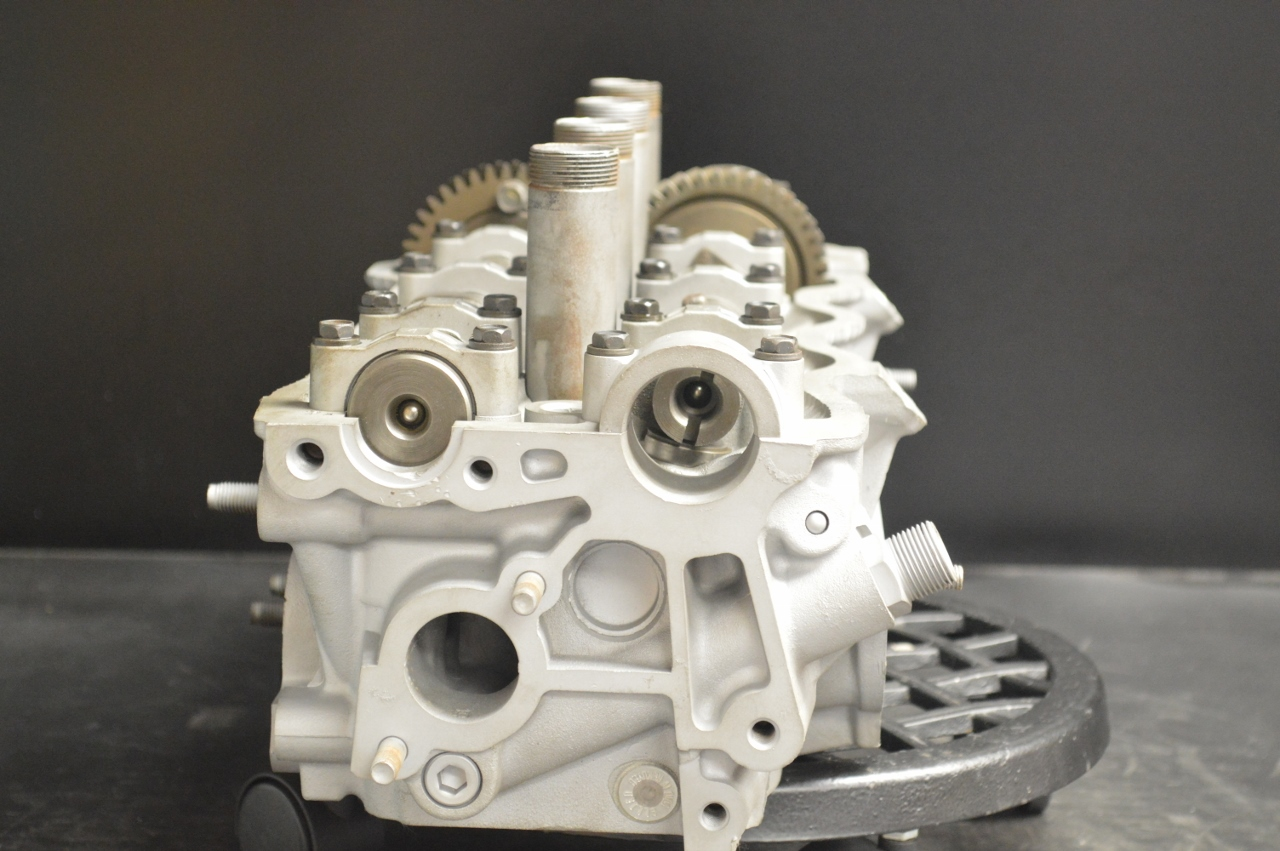

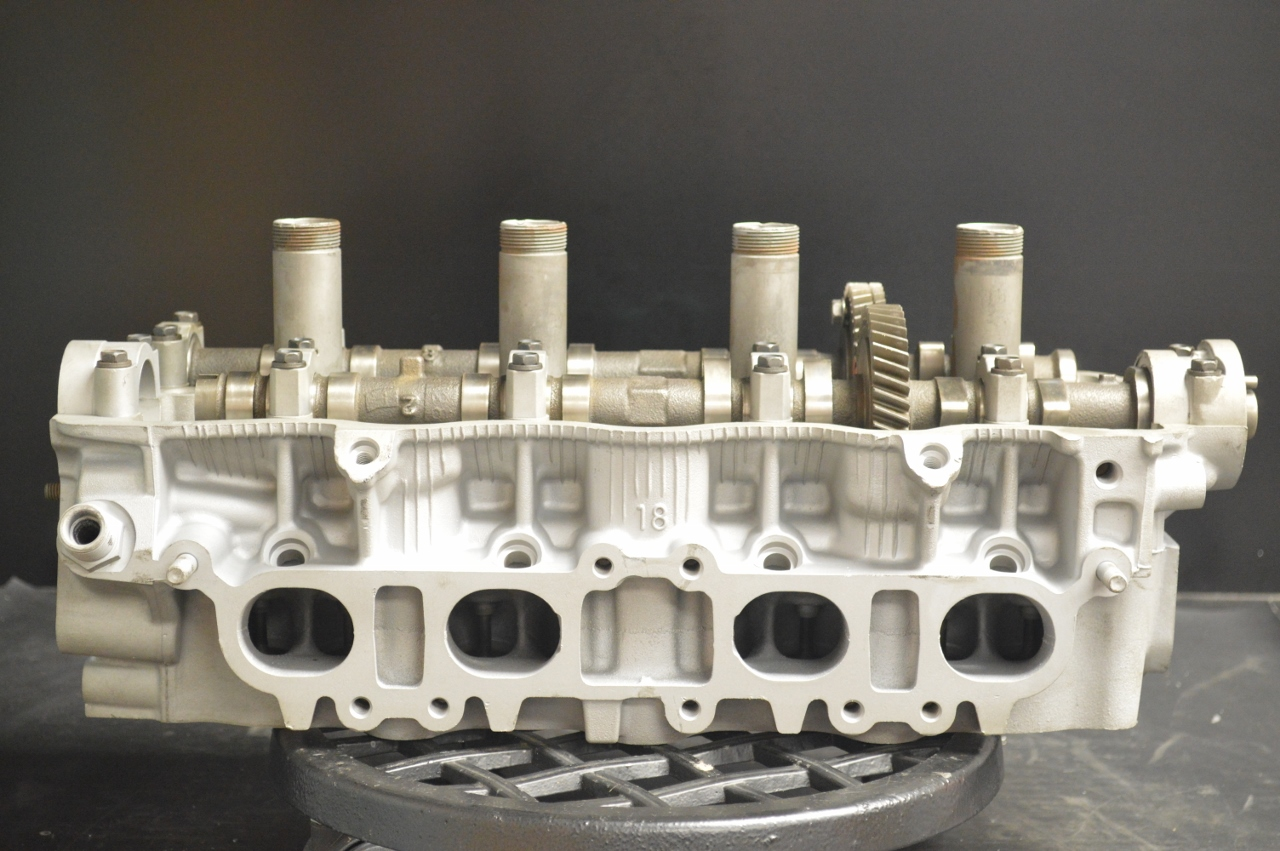

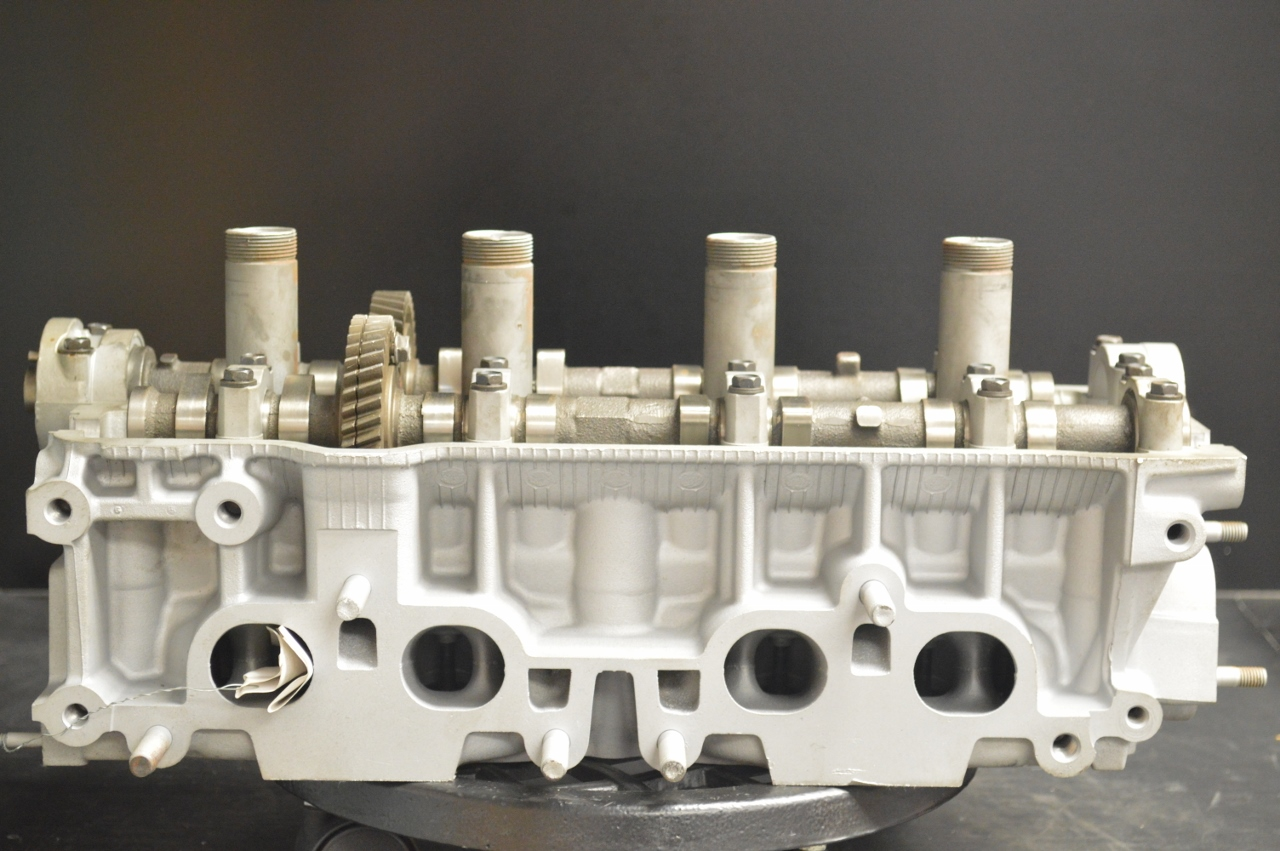

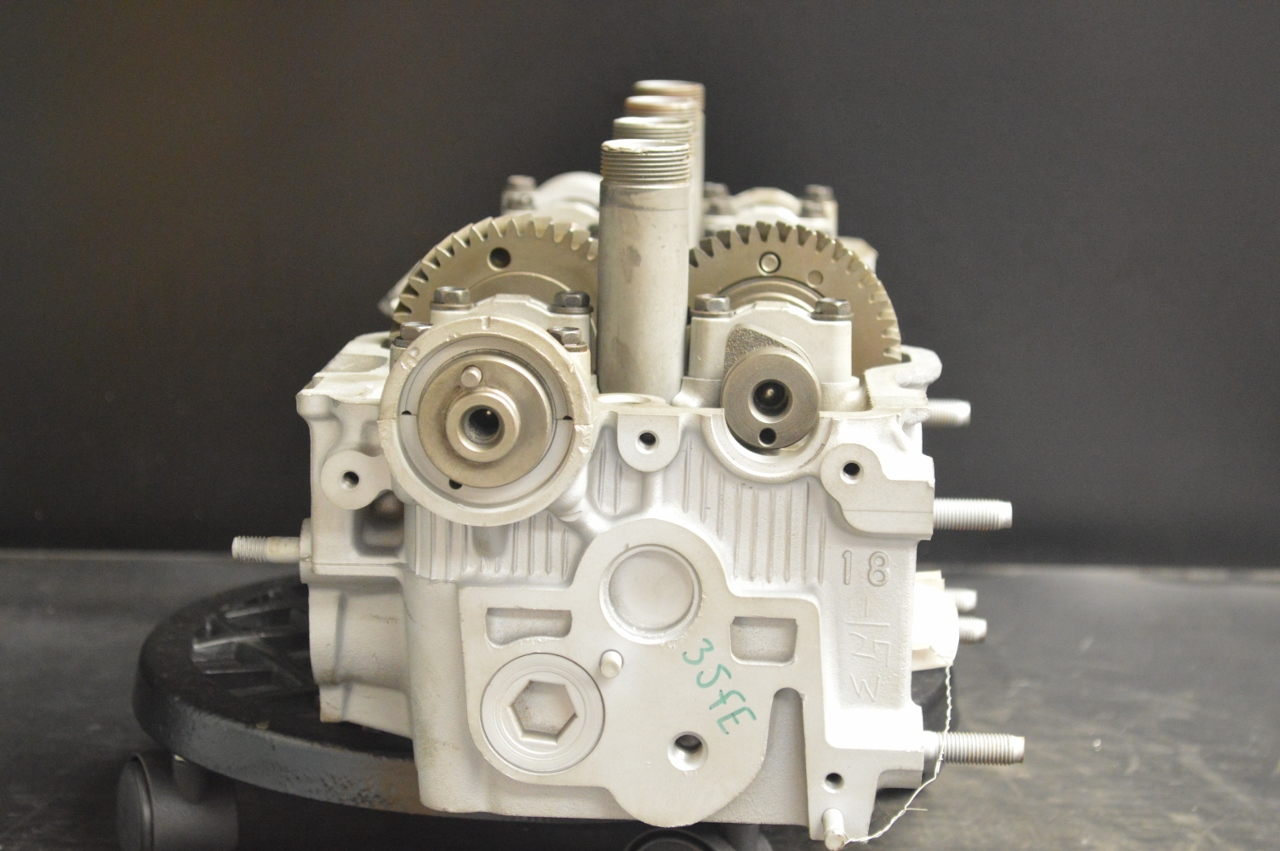

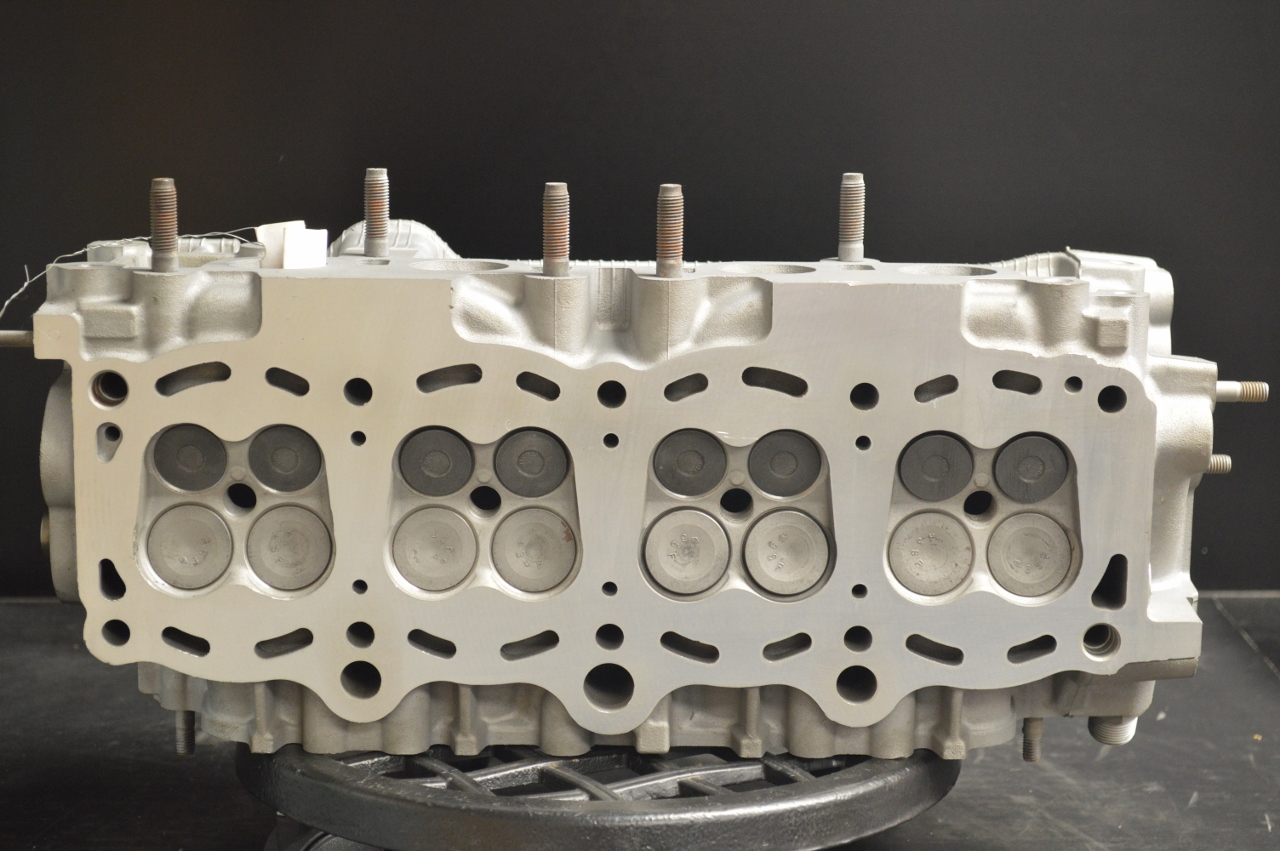

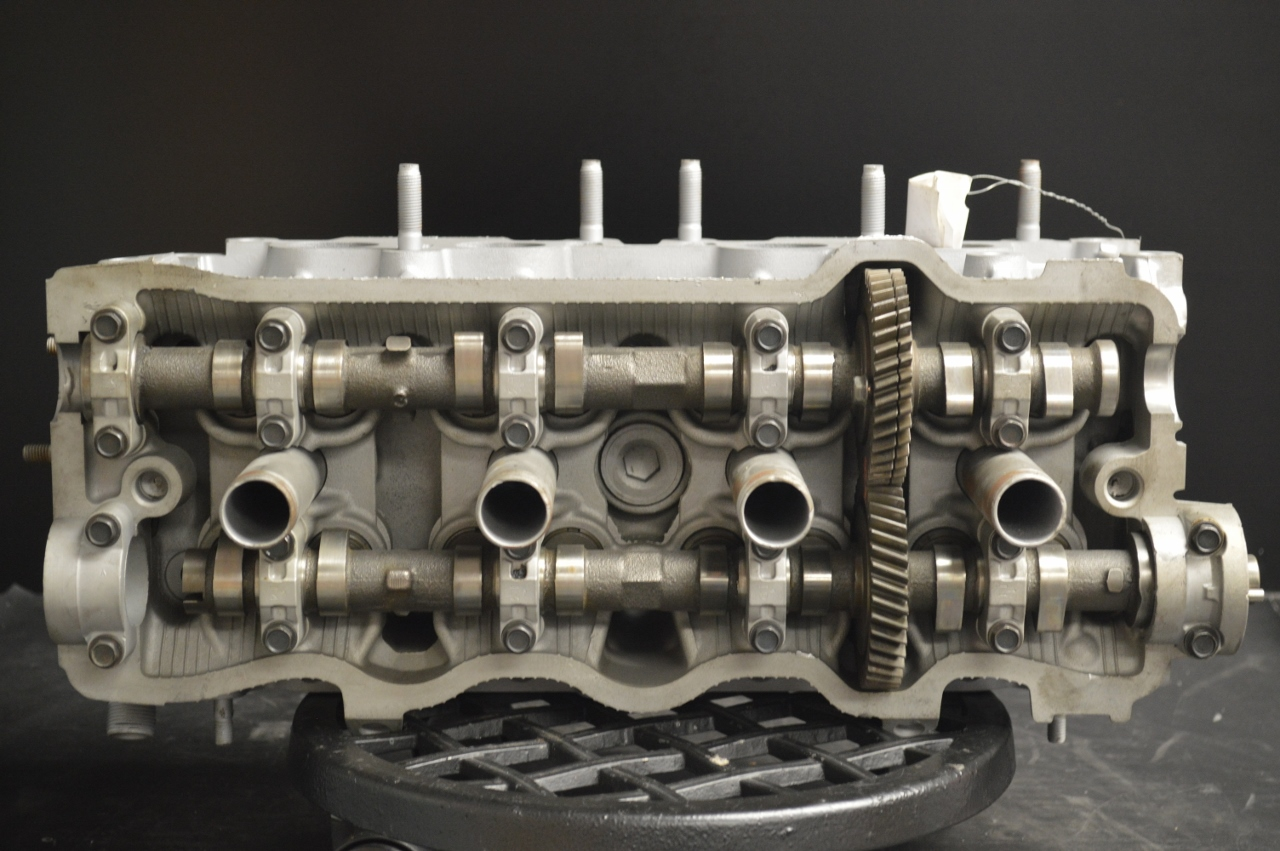

Description: 86-91 Toyota 2.0L L4 Dohc 16V Fl 3SFE Cylinder Head
This Cylinder Head has a core charge of $100.00 included in the cost. This charge is FULLY REFUNDED upon return. We will include a prepaid label for the return freight.
Looking for a high-quality replacement for your Toyota cylinder head? Look no further than the 86-91 Toyota 2.0L L4 DOHC 16V FL 3SFE Cylinder Head.
Designed to surpass original equipment manufacturer (OEM) standards, this cylinder head guarantees peak performance and long-lasting durability for your vehicle.
Manufactured by Toyota, a trusted name in automotive engineering, this cylinder head is specifically designed for Toyota vehicles within the year range of 1986 to 1991. It's compatible with engines boasting a size of 2.0L, featuring a robust L4 DOHC configuration.
In the realm of engine parts, precision and reliability stand as absolute essentials. That's why this cylinder head undergoes a meticulous refurbishment process to meet and exceed the rigorous standards set by the Toyota Camry cylinder head. Each component is thoroughly inspected, cleaned, and restored to like-new condition, ensuring optimal function and longevity.
The 3SFE cylinder head is a critical component of your Toyota engine, responsible for housing the valves, springs, and camshafts essential for proper combustion and power generation. With this cylinder head, you can trust that every aspect of its design and construction has been carefully engineered to deliver exceptional performance and reliability.
Whether you're a DIY enthusiast or a professional mechanic, installing this cylinder head is straightforward, thanks to its precise fit and compatibility with Toyota's 2.0L engines. Rest assured, you're getting a product that seamlessly integrates with your vehicle, minimizing downtime and maximizing efficiency.
By choosing a cylinder head, you're not only getting a cost-effective solution but also contributing to sustainable practices.
Invest in the longevity and performance of your Toyota vehicle with the ALL-75009 86-91 Toyota 2.0L L4 DOHC 16V FL 3SFE engine. Whether you're restoring a classic Toyota head or maintaining a reliable daily driver, this cylinder head offers unmatched quality and reliability.
When it comes to essential engine parts, never settle for anything less than top-notch quality. Trust Toyota's expertise and craftsmanship with this cylinder head, ensuring your vehicle continues to run smoothly mile after mile.
Upgrade your Toyota's performance and reliability with the finest quality Toyota cylinder head on the market. Experience the difference of genuine Toyota engineering with the 86-91 Toyota 2.0L L4 DOHC 16V FL 3SFE Cylinder Head.
Contact our expert support team if you need help or have questions by using our contact form, calling 866-766-9955, or emailing sales@alliedmotorparts.com. We're here to assist you throughout your journey. To get insights on cylinder heads, visit our blog.
Compatible Vehicle
| MAKE | MODEL | YEAR | ENGINE |
|---|---|---|---|
| Toyota | Camry | 1987-1991 | 2.0L 1998CC 122Cu. In. l4 GAS DOHC |
| Toyota | Celica | 1986-1989 | 2.0L 1998CC l4 GAS DOHC |
Not sure this is your casting? Call 866-766-9955 with your casting number and your vehicle's year, make and engine, and we'll confirm it before you buy.
Process & Warranty
Cylinder Head Rebuilding Process
1. Initial Inspection: As a unit comes to our shop, we give it an initial inspection to determine whether there is any reason the head should not proceed to rebuilding. This quickly catches problems such as cracks, casting damage and other conditions that would halt the process for that casting.
2. Teardown: The cylinder head is fully disassembled, which reveals other areas of potential damage to the casting. The parts and the head are separated and go through different cleaning processes.
3. Cleaning: Cast iron heads are cleaned in a thermal cleaning system — baked at 600° to reduce grease and oil to ash, then put through a steel-shot machine for a brilliant finish. Aluminum heads are baked at a lower temperature or put through a high-pressure wash, then glass-beaded.
4. Head Inspection: After cleaning, heads are pressure tested or Magnafluxed to find any cracks. All bolt holes, valve guides, valve seats and other areas are inspected for broken bolts, broken taps, cracked guides and other impairments. Straightness and cam bore wear are also checked.
5. Machining: All heads have guides installed to meet OE conditions and are resurfaced to far exceed factory specifications for surface finish. A three-angle valve job achieves valve seat runout under .001". Valves are ground for a perfect seal between valve and seat.
6. Assembly: New OE-style valve guide seals are installed. Springs are tested for proper seat pressure. Valve seat sealing is vacuum-checked for an airtight fit. Lifters are bled and rebuilt for zero lash after startup. Cams are polished and clearances are checked twice to meet OE oil clearances.
7. Final Inspection: Every head is visually inspected — surface finish, lash, bolt holes and all other areas — to ensure a quality cylinder head.
Questions about our cylinder head services? Call 1-866-766-9955.
Warranty — 12 months from purchase
Match the head before installation. We will not warranty an incorrectly installed head. Call us immediately with any questions or concerns about your purchase.
First 3 months:
- Repair or replacement of the cylinder head.
- Gasket set supplied for reinstallation.
- Labor calculated from book time at $25.00 per hour, up to a maximum of 10 hours.
- Replacement of fluids and filters.
Remaining 9 months:
- Repair or replacement of the cylinder head.
- Gasket set supplied for reinstallation.
- Replacement of fluids and filters.
- No labor is covered.
Warranty is void if:
- The head was improperly installed.
- The head was overheated (heat tab melted or missing).
- The head received insufficient oiling.
- The cooling system operated improperly.
Warranty returns must be sent to Allied Motor Parts uncleaned and fully assembled — any disassembly voids the warranty — and must be accompanied by proof of purchase. There is no warranty on threaded bolt holes after installation.
This warranty is in lieu of any other warranty, expressed or implied, including any implied warranty of merchantability or fitness for a particular purpose.
Quality Assurance
Here’s why our cylinder heads stand out:
Thorough Inspection: Every head undergoes a complete teardown, cleaning, and detailed inspection for cracks and imperfections.
Advanced Cleaning: Thermal cleaning for cast iron and high-pressure washing for aluminum ensures a brilliant finish.
Precision Machining: CBN resurfacing, triple-angle valve cuts, and guide installations exceed OEM specifications.
Rigorous Testing: Vacuum tests, tension checks, and pressure tests guarantee performance and durability.
High-Quality Components: New seals, plugs, and rebuilt lifters ensure optimal functionality.
Final Assurance: Each head is inspected, stamped, and stored in a climate-controlled environment.
Wide Availability: Over 2,000 cylinder heads for all makes and models, ready for repair or exchange.
