Description

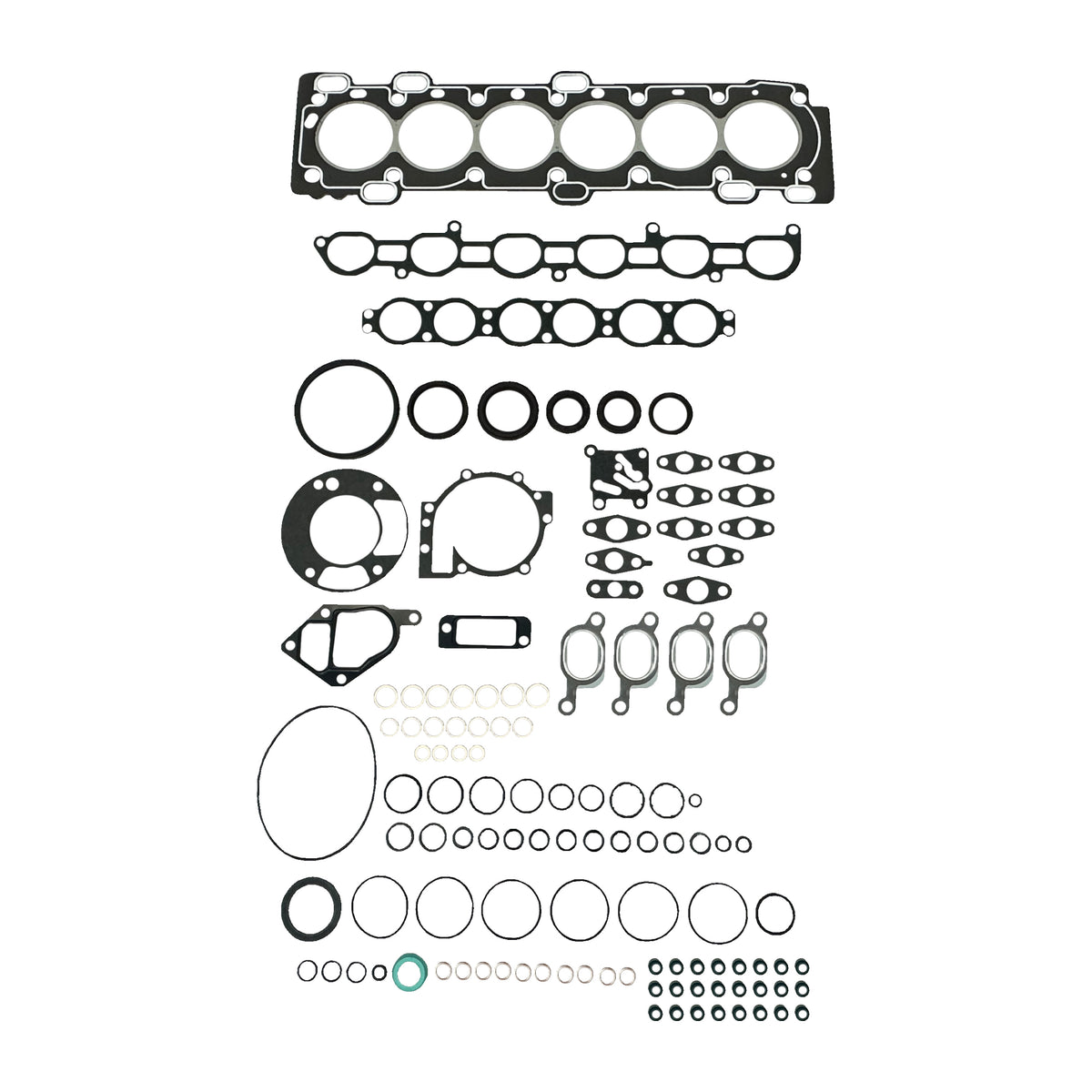

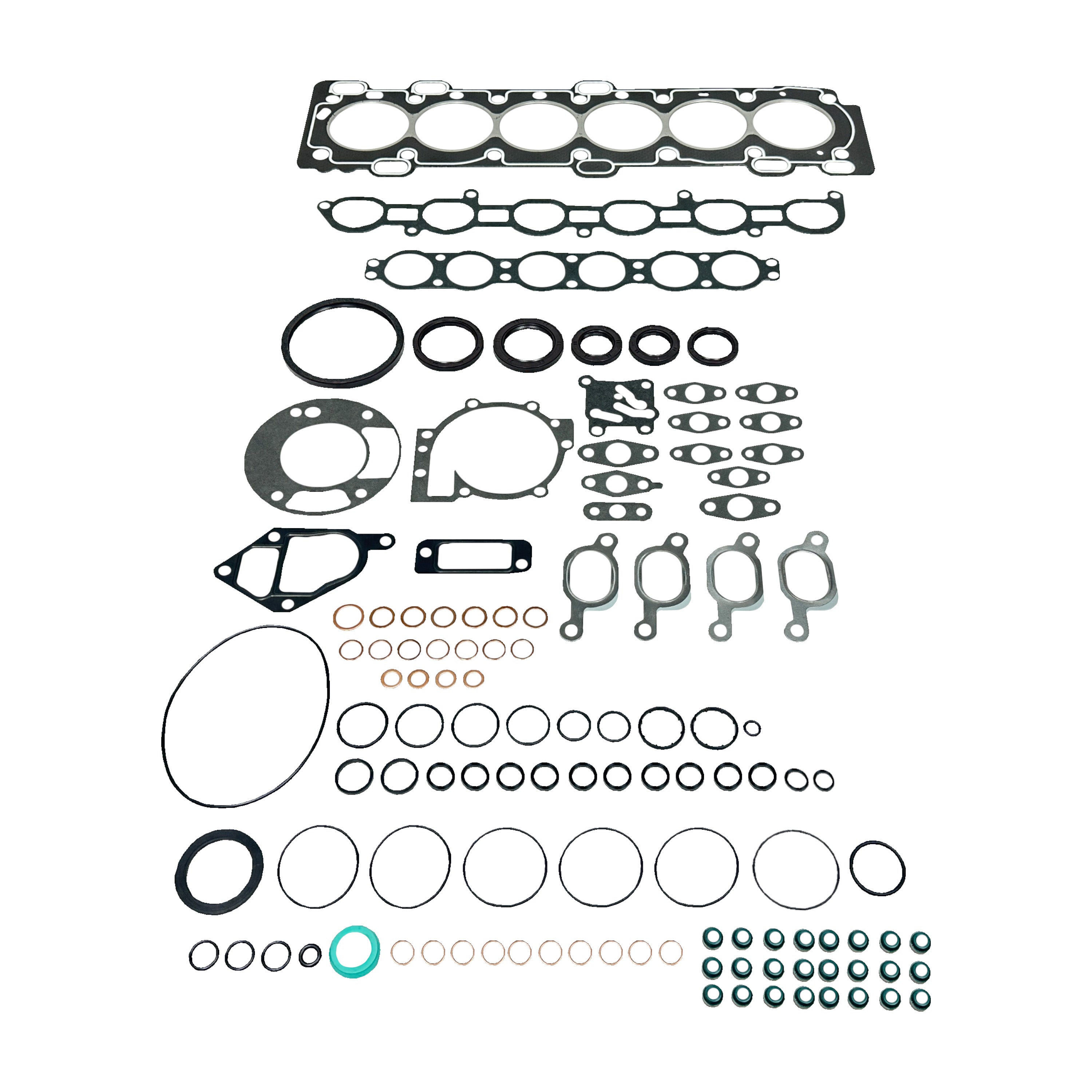

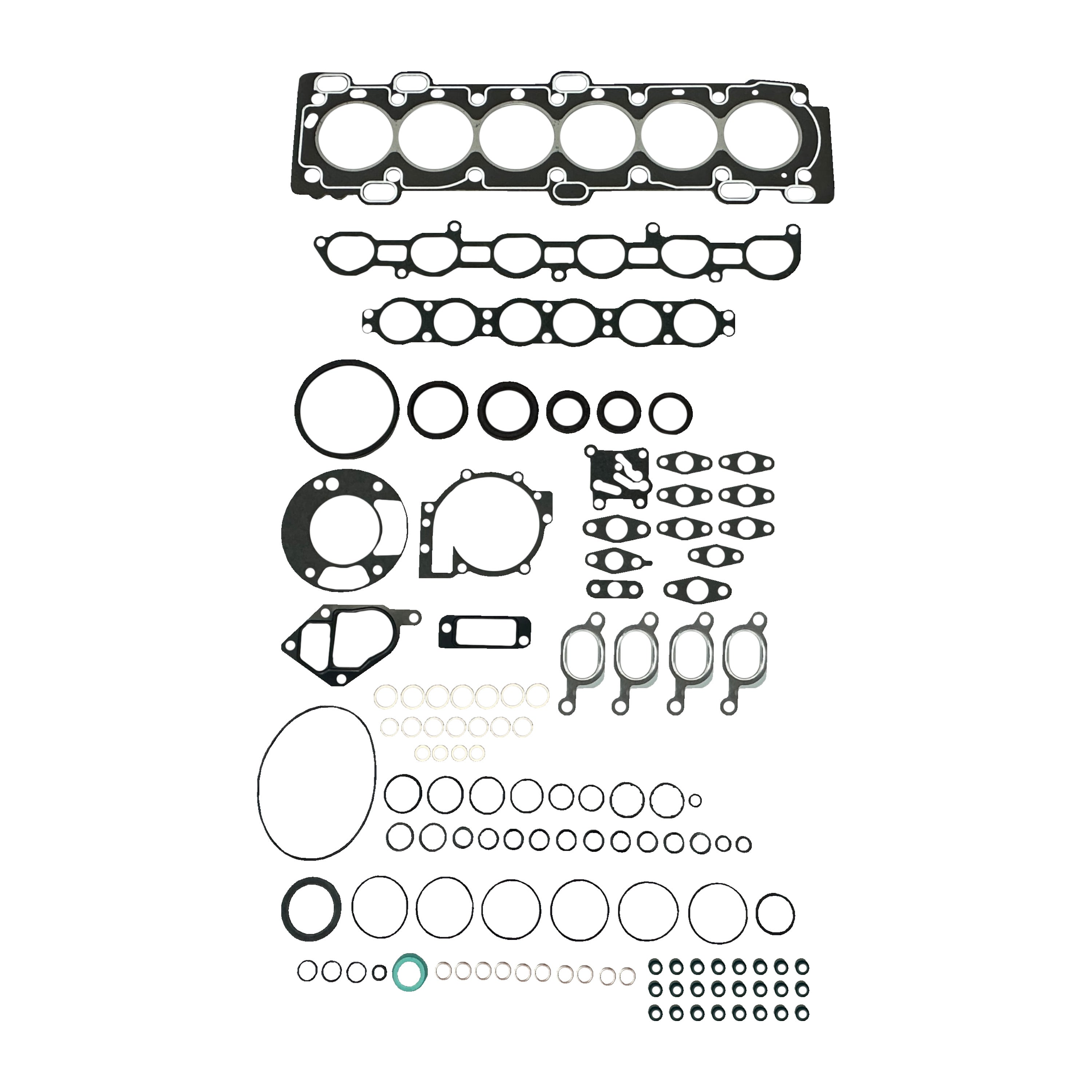

DNJ Full Gasket Sets are professional grade sealing solutions engineered for complete engine rebuilds, offering all necessary sealing components to restore factory-level performance, prevent leaks, and ensure long-term durability. Each set includes head gaskets, valve cover gaskets & grommets, intake manifold gaskets, plenum gaskets, exhaust manifold gaskets, oil pan gasket, timing cover gasket, water pump and thermostat gaskets, along with critical seals like front and rear crankshaft seals, camshaft seals, valve stem seals, and a wide range of O-rings and seals (where applicable). All DNJ sealing sets are manufactured using non-asbestos materials and are designed to meet or exceed OEM quality standards. A variety of materials used in the set include Multi-Layer Steel (MLS) for head gasketsideal for modern engines operating under high pressureGraphite and non-asbestos composite materials for specific applications, and rubber, silicone, and EPDM for coolant, oil, and valve cover sealing, PTFE, and Premium Viton valve stem seals provide excellent resistance to heat and oil. DNJ proudly offers the largest inventory of MLS full gasket sets in the industry, ensuring coverage for a wide range of domestic and import vehicles. To complement its sealing technology, and to complete the job, DNJ also offers a complete line of Head Bolts, which is critical for proper cylinder head installation. It is important to note that Torque-To-Yield (TTY) head bolts must never be reused, as reinstallation can compromise clamping force and lead to engine failure. With precision engineering and top-tier materials, DNJ Full Gasket Sets deliver exceptional performance and long-lasting durability.
Process & Warranty
Cylinder Head Rebuilding Process
1. Initial Inspection: As a unit comes to our shop, we give it an initial inspection to determine whether there is any reason the head should not proceed to rebuilding. This quickly catches problems such as cracks, casting damage and other conditions that would halt the process for that casting.
2. Teardown: The cylinder head is fully disassembled, which reveals other areas of potential damage to the casting. The parts and the head are separated and go through different cleaning processes.
3. Cleaning: Cast iron heads are cleaned in a thermal cleaning system — baked at 600° to reduce grease and oil to ash, then put through a steel-shot machine for a brilliant finish. Aluminum heads are baked at a lower temperature or put through a high-pressure wash, then glass-beaded.
4. Head Inspection: After cleaning, heads are pressure tested or Magnafluxed to find any cracks. All bolt holes, valve guides, valve seats and other areas are inspected for broken bolts, broken taps, cracked guides and other impairments. Straightness and cam bore wear are also checked.
5. Machining: All heads have guides installed to meet OE conditions and are resurfaced to far exceed factory specifications for surface finish. A three-angle valve job achieves valve seat runout under .001". Valves are ground for a perfect seal between valve and seat.
6. Assembly: New OE-style valve guide seals are installed. Springs are tested for proper seat pressure. Valve seat sealing is vacuum-checked for an airtight fit. Lifters are bled and rebuilt for zero lash after startup. Cams are polished and clearances are checked twice to meet OE oil clearances.
7. Final Inspection: Every head is visually inspected — surface finish, lash, bolt holes and all other areas — to ensure a quality cylinder head.
Questions about our cylinder head services? Call 1-866-766-9955.
Warranty — 12 months from purchase
Match the head before installation. We will not warranty an incorrectly installed head. Call us immediately with any questions or concerns about your purchase.
First 3 months:
- Repair or replacement of the cylinder head.
- Gasket set supplied for reinstallation.
- Labor calculated from book time at $25.00 per hour, up to a maximum of 10 hours.
- Replacement of fluids and filters.
Remaining 9 months:
- Repair or replacement of the cylinder head.
- Gasket set supplied for reinstallation.
- Replacement of fluids and filters.
- No labor is covered.
Warranty is void if:
- The head was improperly installed.
- The head was overheated (heat tab melted or missing).
- The head received insufficient oiling.
- The cooling system operated improperly.
Warranty returns must be sent to Allied Motor Parts uncleaned and fully assembled — any disassembly voids the warranty — and must be accompanied by proof of purchase. There is no warranty on threaded bolt holes after installation.
This warranty is in lieu of any other warranty, expressed or implied, including any implied warranty of merchantability or fitness for a particular purpose.
Quality Assurance
Here’s why our cylinder heads stand out:
Thorough Inspection: Every head undergoes a complete teardown, cleaning, and detailed inspection for cracks and imperfections.
Advanced Cleaning: Thermal cleaning for cast iron and high-pressure washing for aluminum ensures a brilliant finish.
Precision Machining: CBN resurfacing, triple-angle valve cuts, and guide installations exceed OEM specifications.
Rigorous Testing: Vacuum tests, tension checks, and pressure tests guarantee performance and durability.
High-Quality Components: New seals, plugs, and rebuilt lifters ensure optimal functionality.
Final Assurance: Each head is inspected, stamped, and stored in a climate-controlled environment.
Wide Availability: Over 2,000 cylinder heads for all makes and models, ready for repair or exchange.
